PART #: 520-4541

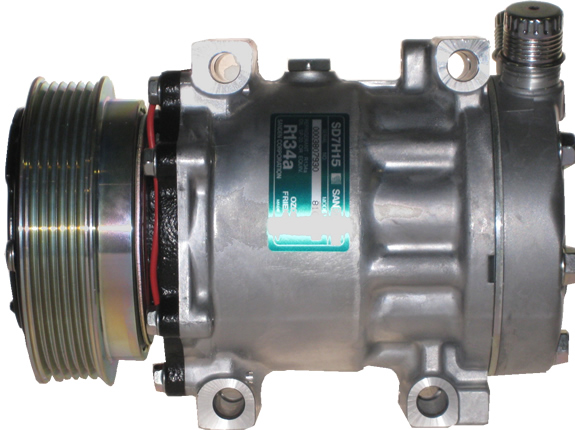

Part Name: SANDEN SD7H15HS 12GV DIRECT MT
SKU: 520-4541
Price: $794.92 Each
Call for availability
| Compressor Series | SD7H15 |
| Compressor Type | HD |
| Compressor Mount Type | SD7 Direct Short |
| Mount T=Top/ B=Bottom (mm) | T92 B87 |
| Head ID | 4418 |
| Port Angle | V |
| Porting Style | O-Ring Compression |
| Rotor diameter (mm) | 125 |
| Rotor Groove | PV12 |
| Rotor First Gauge Line | 36.54 |
| Coil Volt | 12V |
| Refrigerant | R134A |
Cross Reference Information
+ - INTERNATIONAL SEMI
| MODEL | MANUFACTURER # | ADDITIONAL PART INFO |
|---|---|---|
| 1000 | 3622662C1 | |
| 1652 | 3622662C1 | |
| 2000 FLEETSTAR | 3622662C1 | |
| 2010 FLEETSTAR | 3622662C1 | |
| 2011A | 3622662C1 | |
| 2050 FLEETSTAR | 3622662C1 | |
| 2070 FLEETSTAR | 3622662C1 | |
| 2300 | 3622662C1 | |
| 2500 | 3622662C1 | |
| 2574 | 3622662C1 | |
| 2600 | 3622662C1 | |
| 2674 | 3622662C1 | |
| 3000 | 3622662C1 | |
| 3600 | 3622662C1 | |
| 4000 | 3622662C1 | |
| 4070A | 3622662C1 | |
| 4070B | 3622662C1 | |
| 4100 DURASTAR | 3622662C1 | |
| 4300 DURASTAR | 3622662C1 | |
| 4400 DURASTAR | 3622662C1 | |
| 4600 | 3622662C1 | |
| 4954 | 3622662C1 | |
| 7000 WORKSTAR | 3622662C1 | |
| 7100 | 3622662C1 | |
| 7400 WORKSTAR | 3622662C1 | |
| 7500 WORKSTAR | 3622662C1 | |
| 7600 WORKSTAR | 3622662C1 | |
| 7700 WORKSTAR | 3622662C1 | |
| 8000 | 3622662C1 | |
| 8300 | 3622662C1 | |
| 8500 | 3622662C1 | |
| 8500 TRANSTAR | 3622662C1 | |
| 8600 | 3622662C1 | |
| 8600 TRANSTAR | 3622662C1 | |
| 8600I | 3622662C1 | |
| 9000 | 3622662C1 | |
| 9000I | 3622662C1 | |
| 9100 | 3622662C1 | |
| 9100I | 3622662C1 | |
| 9300 | 3622662C1 | |
| 9370 | 3622662C1 | |
| 9670 | 3622662C1 | |
| 9700 | 3622662C1 | |
| 9900IX | 3622662C1 | |
| C400 | 3622662C1 | |
| C500 | 3622662C1 | |
| C600 | 3622662C1 | |
| C700 | 3622662C1 | |
| C800 | 3622662C1 | |
| C900 | 3622662C1 | |
| CARGOSTAR | 3622662C1 | |
| CXT | 3622662C1 | |
| DURASTAR DT | 3622662C1 | |
| FLEETSTAR | 3622662C1 | |
| BUS INTERNATIONAL | 3622662C1 | |
| LF | 3622662C1 | |
| LOADSTAR | 3622662C1 | |
| PAYSTAR | 3622662C1 | |
| COF 5370 | 3622662C1 | |
| PAYSTAR C5000 | 3622662C1 | |
| PROSTAR | 3622662C1 | |
| RXT | 3622662C1 | |
| S1700 | 3622662C1 | |
| S1900 | 3622662C1 | |
| S1954 | 3622662C1 | |
| SCOUT | 3622662C1 | |
| STEP VAN - FED EX | 3622662C1 | |
| TRANSTAR | 3622662C1 | |
| TRANSTAR 4070A | 3622662C1 | |
| TRANSTAR 4070B | 3622662C1 | |
| WORKSTAR | 3622662C1 |
