PART #: 520-4602

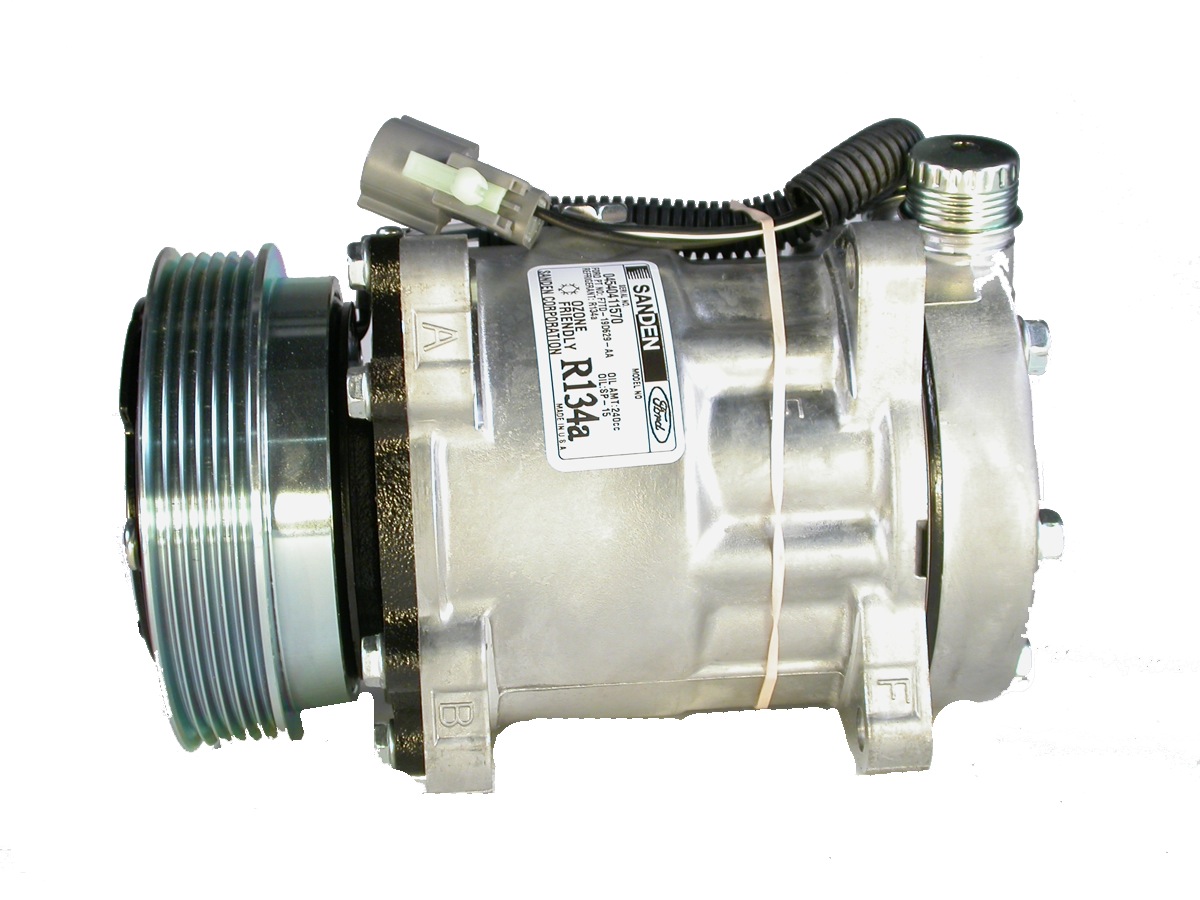

Part Name: COMP SD7H15 12V 1GR 169MM DM WH V PAD5
SKU: 520-4602
Price: $576.83 Each
Call for availability
| Part Description | COMPRESSOR SD7H15 VPAD 169mm 1A 12V DIR WH |
| Compressor Model | SD7H15 |
| OEM | ABP N83 304117 |
| Aftermarket Num | 4602 |
| Voltage | 12 |
| Grooves | 1 |
| Clutch Diameter | 169mm |
| Coil Pos | 12 |
| Compressor Mount | DIRECT |
| Compressor Fitting | PAD |
| Cylinder Head | WH |
| Oil Type | PAG 100 |
| Oil Oz. | 10.1 |
Cross Reference Information
+ - FORD/STERLING SEMI
| MODEL | MANUFACTURER # | ADDITIONAL PART INFO |
|---|---|---|
| AEROMAX 9000 | F4HT19D629BA | |
| B500 | F4HT19D629BA | Direct Mount With OE Wire Connection |
| B600 | F4HT19D629BA | Direct Mount With OE Wire Connection |
| B700 | F4HT19D629BA | Direct Mount With OE Wire Connection |
| B750 | F4HT19D629BA | Direct Mount With OE Wire Connection |
| B800 | F4HT19D629BA | Direct Mount With OE Wire Connection |
| CF | F4HT19D629BA | Direct Mount With OE Wire Connection |
| CF450 | F4HT19D629BA | Direct Mount With OE Wire Connection |
| CF550 | F4HT19D629BA | Direct Mount With OE Wire Connection |
| CF600 | F4HT19D629BA | Direct Mount With OE Wire Connection |
| CF8000 | F4HT19D629BA | Direct Mount With OE Wire Connection |
| F600 | F4HT19D629BA | Direct Mount With OE Wire Connection |
| F650 | F4HT19D629BA | Direct Mount With OE Wire Connection |
| F700 | F4HT19D629BA | Direct Mount With OE Wire Connection |
| F750 | F4HT19D629BA | Direct Mount With OE Wire Connection |
| F800 | F4HT19D629BA | Direct Mount With OE Wire Connection |
| F900 | F4HT19D629BA | Direct Mount With OE Wire Connection |
| L | F4HT19D629BA | Direct Mount With OE Wire Connection |
| L8000 | F4HT19D629BA | |
| L9000 | F4HT19D629BA | |
| LA8000 | F4HT19D629BA | Direct Mount With OE Wire Connection |
| LCF | F4HT19D629BA | Direct Mount With OE Wire Connection |
| LL | F4HT19D629BA | Direct Mount With OE Wire Connection |
| LN | F4HT19D629BA | Direct Mount With OE Wire Connection |
| LN8000 | F4HT19D629BA | Direct Mount With OE Wire Connection |
| LNT | F4HT19D629BA | Direct Mount With OE Wire Connection |
| LS | F4HT19D629BA | Direct Mount With OE Wire Connection |
| LT | F4HT19D629BA | Direct Mount With OE Wire Connection |
| LT8513 | F4HT19D629BA | Direct Mount With OE Wire Connection |
| LTL | F4HT19D629BA | Direct Mount With OE Wire Connection |
| LTL800 | F4HT19D629BA | Direct Mount With OE Wire Connection |
| LTL9000 | F4HT19D629BA | |
| LTS | F4HT19D629BA | Direct Mount With OE Wire Connection |
| SILVERSTAR | F4HT19D629BA | Direct Mount With OE Wire Connection |
| STERLING SERIES | F4HT19D629BA | Direct Mount With OE Wire Connection |
| STL | F4HT19D629BA | Direct Mount With OE Wire Connection |
| AEROMAX 9000 | F4HZ-19703H | |
| B500 | F4HZ-19703H | Direct Mount With OE Wire Connection |
| B600 | F4HZ-19703H | Direct Mount With OE Wire Connection |
| B700 | F4HZ-19703H | Direct Mount With OE Wire Connection |
| B750 | F4HZ-19703H | Direct Mount With OE Wire Connection |
| B800 | F4HZ-19703H | Direct Mount With OE Wire Connection |
| CF | F4HZ-19703H | Direct Mount With OE Wire Connection |
| CF450 | F4HZ-19703H | Direct Mount With OE Wire Connection |
| CF550 | F4HZ-19703H | Direct Mount With OE Wire Connection |
| CF600 | F4HZ-19703H | Direct Mount With OE Wire Connection |
| CF8000 | F4HZ-19703H | Direct Mount With OE Wire Connection |
| F600 | F4HZ-19703H | Direct Mount With OE Wire Connection |
| F650 | F4HZ-19703H | Direct Mount With OE Wire Connection |
| F700 | F4HZ-19703H | Direct Mount With OE Wire Connection |
| F750 | F4HZ-19703H | Direct Mount With OE Wire Connection |
| F800 | F4HZ-19703H | Direct Mount With OE Wire Connection |
| F900 | F4HZ-19703H | Direct Mount With OE Wire Connection |
| L | F4HZ-19703H | Direct Mount With OE Wire Connection |
| L8000 | F4HZ-19703H | |
| L9000 | F4HZ-19703H | |
| LA8000 | F4HZ-19703H | Direct Mount With OE Wire Connection |
| LCF | F4HZ-19703H | Direct Mount With OE Wire Connection |
| LL | F4HZ-19703H | Direct Mount With OE Wire Connection |
| LN | F4HZ-19703H | Direct Mount With OE Wire Connection |
| LN8000 | F4HZ-19703H | Direct Mount With OE Wire Connection |
| LNT | F4HZ-19703H | Direct Mount With OE Wire Connection |
| LS | F4HZ-19703H | Direct Mount With OE Wire Connection |
| LT | F4HZ-19703H | Direct Mount With OE Wire Connection |
| LT8513 | F4HZ-19703H | Direct Mount With OE Wire Connection |
| LTL | F4HZ-19703H | Direct Mount With OE Wire Connection |
| LTL800 | F4HZ-19703H | Direct Mount With OE Wire Connection |
| LTL9000 | F4HZ-19703H | |
| LTS | F4HZ-19703H | Direct Mount With OE Wire Connection |
| SILVERSTAR | F4HZ-19703H | Direct Mount With OE Wire Connection |
| STERLING SERIES | F4HZ-19703H | Direct Mount With OE Wire Connection |
| STL | F4HZ-19703H | Direct Mount With OE Wire Connection |
