CONSTRUCTION EQUIPMENT
PART #: 520-6397

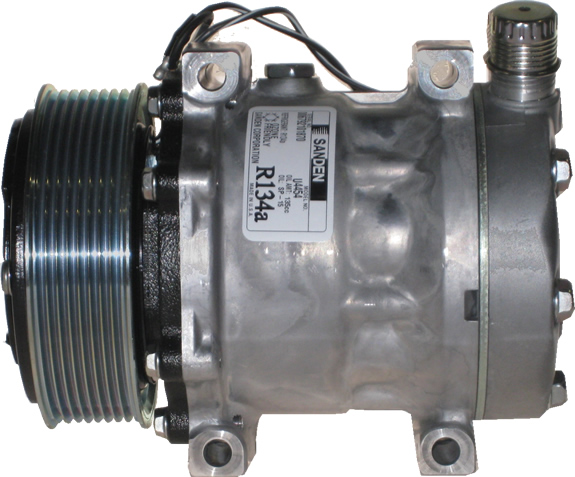

Part Name: COMP SD7H15 12V 4GV DM H ROTO
SKU: 520-6397
Price: $1,021.03 Each
Call for availability
| Specifications | |
|---|---|
| COMPRESSOR TYPE | SD7H15 |
| HEAD TYPE | MD |
| OIL TYPE | R134 Pag 100 Oil |
| CLUTCH DIAMETER | 119 mm, 4.6" |
| VOLTAGE | 12 |
| GROOVES | 4 |
| BELT WIDTH | Serpentine |
| COIL POSITION | N/A |
| GAUGE LINE | 49.65C, 56.46F |
Cross Reference Information
+ - CASE BACKHOE
| MODEL | MANUFACTURER # | ADDITIONAL PART INFO |
|---|---|---|
| 580 SUPER N WT | 84159488 | Tier 3 |
| 580SM SERIES 3 | 84159488 | |
| 590SM SERIES 3 | 84159488 | |
| 580 SUPER N WT | 87548077 | Tier 3 |
| 580SM SERIES 3 | 87548077 | |
| 590SM SERIES 3 | 87548077 |
