FARM EQUIPMENT
PART #: 411-5692

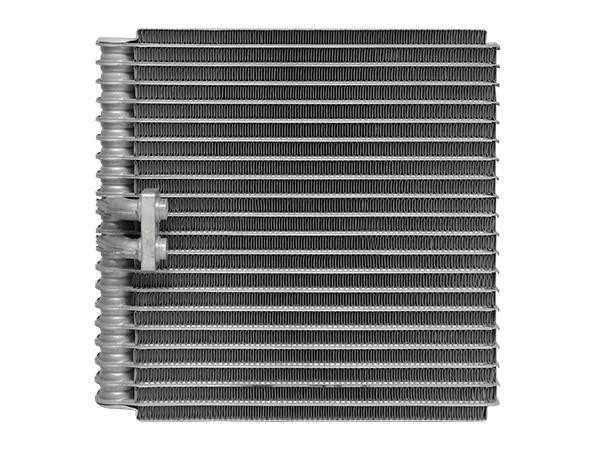

Part Name: EVAPORATOR/HEATER COIL JD
SKU: 411-5692
Price: $577.60 Each
Call for availability
| Specifications | |
|---|---|
| VALVE TYPE | Block - Flange Mount |
| FITTING TYPE | O-Ring |
| CORE LENGTH | 29 1/4" |
| CORE HEIGHT | 6" |
| CORE WIDTH | 5" |
| OVERALL LENGTH | 33 1/2" |
| OVERALL HEIGHT | 6" |
| OVERALL WIDTH | 5" |
| FITTING INLET | #8 O-Ring |
| FITTING OUTLET | #10 O-Ring |
Cross Reference Information
+ - JOHN DEERE TRACTOR
| MODEL | MANUFACTURER # | ADDITIONAL PART INFO |
|---|---|---|
| 7200 | RE241389 | Serial Number 002430 to 003822 |
| 7400 | RE241389 | Serial Number 002846 to 005043 |
| 7600 | RE241389 | Serial Number 005988 to 008003 |
| 7700 | RE241389 | Serial Number 007100 to 010007 |
| 7800 | RE241389 | Serial Number 010247 and Above |
| 7200 | RE58069 | Serial Number 002430 to 003822 |
| 7400 | RE58069 | Serial Number 002846 to 005043 |
| 7600 | RE58069 | Serial Number 005988 to 008003 |
| 7700 | RE58069 | Serial Number 007100 to 010007 |
| 7800 | RE58069 | Serial Number 010247 and Above |
